1N5182, 1N5181 Datasheet - Microsemi

1N5182 High Voltage Rectifier

These “standard recovery” high voltage rectifier diode series are military qualified to MIL-PRF19500/279 for the 1N3644 through 1N3647 part numbers. They are ideal for high voltage, high-reliability applications where a failure cannot be tolerated. These 0.10 and 0.25 Amp rated rectifiers with work.

1N5182 Features

* JEDEC registered 1N3643

* 1N3647, 1N4254

* 1N4257, and 1N5181

* 1N5184 series.

* Voidless hermetically sealed glass package.

* Triple-layer passivation.

* Lowest reverse leakage available.

* Absolute high voltage / high temperature

1N5181-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N5182, 1N5181. Please refer to the document for exact specifications by model.

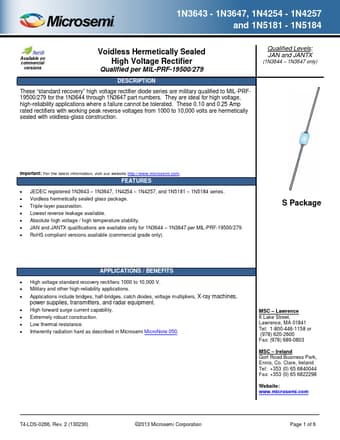

1N5182 Datasheet Preview Page 2 1N5182 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5182, 1N5181

Manufacturer:

Microsemi ↗

File Size:

163.64 KB

Description:

High voltage rectifier.

Note:

This datasheet PDF includes multiple part numbers: 1N5182, 1N5181.
Please refer to the document for exact specifications by model.
