1N5183, 1N5181 - High Voltage Rectifier

1N5183 Description

1N3643 - 1N3647, 1N4254 - 1N4257 and 1N5181 - 1N5184 Available on commercial versions Voidless Hermetically Sealed High Voltage Rectifier Qualified .
These “standard recovery” high voltage rectifier diode series are military qualified to MIL-PRF19500/279 for the 1N3644 through 1N3647 part numbers.

1N5183 Features

* JEDEC registered 1N3643
* 1N3647, 1N4254
* 1N4257, and 1N5181
* 1N5184 series.
* Voidless hermetically sealed glass package.
* Triple-layer passivation.
* Lowest reverse leakage available.
* Absolute high voltage / high temperature

1N5183 Applications

* where a failure cannot be tolerated. These 0.10 and 0.25 Amp rated rectifiers with working peak reverse voltages from 1000 to 10,000 volts are hermetically sealed with voidless-glass construction. Qualified Levels: JAN and JANTX (1N3644
* 1N3647 only) Important: For the latest information,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5183, 1N5181. Please refer to the document for exact specifications by model.

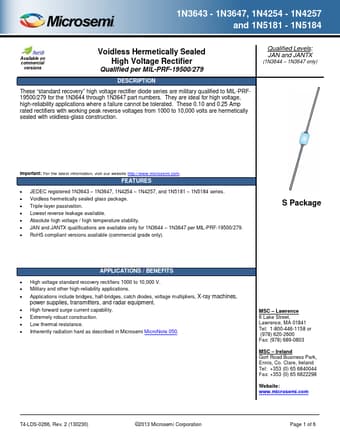

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5183, 1N5181
Manufacturer
Microsemi ↗
File Size
163.64 KB
Datasheet
1N5181-Microsemi.pdf
Description
High Voltage Rectifier
Note
This datasheet PDF includes multiple part numbers: 1N5183, 1N5181.
Please refer to the document for exact specifications by model.
