1N5711UB SCHOTTKY BARRIER DIODES

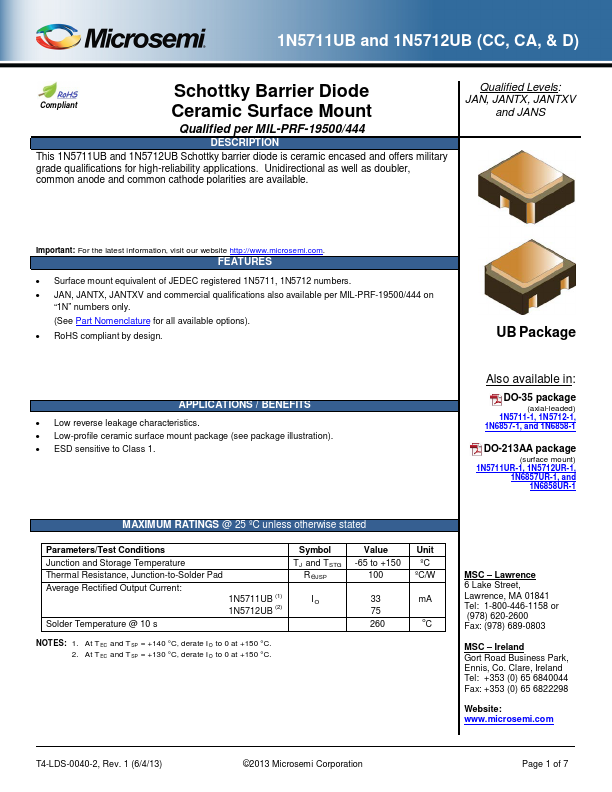

📥 Download Datasheet Datasheet Preview Page 1

Description

1N5711UB and 1N5712UB (CC, CA, & D) Schottky Barrier Diode Compliant Ceramic Surface Mount Qualified per MIL-PRF-19500/444 .
This 1N5711UB and 1N5712UB Schottky barrier diode is ceramic encased and offers military grade qualifications for high-reliability applications.

📥 Download Datasheet

Preview of 1N5711UB PDF

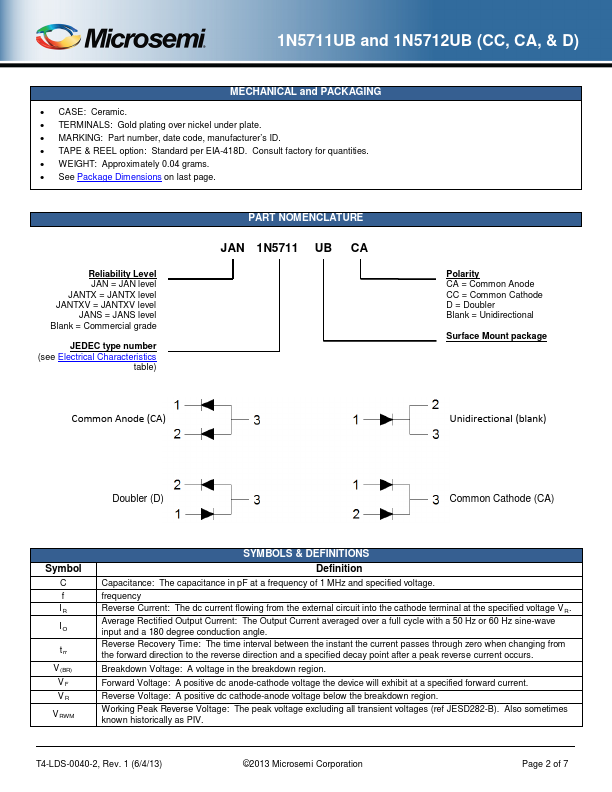

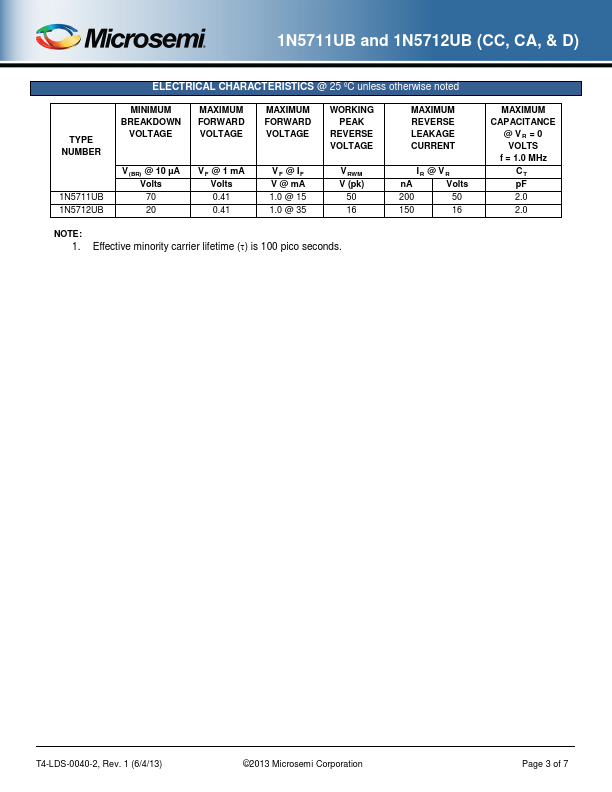

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Surface mount equivalent of JEDEC registered 1N5711, 1N5712 numbers.
* JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
* RoHS compliant by design. UB Package APP
