1N5711UBCA, 1N5711UB Datasheet - Microsemi

1N5711UBCA SCHOTTKY BARRIER DIODES

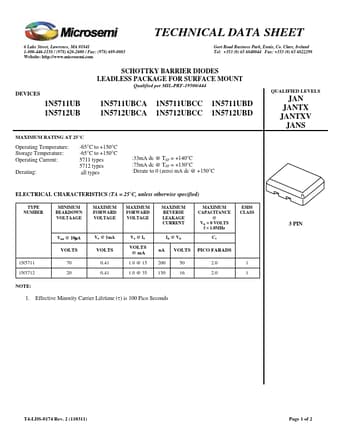

TECHNICAL DATA SHEET 6 Lake Street, Lawrence, MA 01841 1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803 Website: http://www.microsemi.com Gort Road Business Park, Ennis, Co. Clare, Ireland Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298 DEVICES 1N5711UB 1N5712UB SCHOTTKY BARRIER DIODES LEADLESS PACKAGE FOR SURFACE MOUNT Qualified per MIL-PRF-19500/444 1N5711UBCA 1N5711UBCC 1N5711UBD 1N5712UBCA 1N5712UBCC 1N5712UBD MAXIMUM RATING AT 25°C Operating Temperature: Storage Temperature: Op.

1N5711UB-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N5711UBCA, 1N5711UB. Please refer to the document for exact specifications by model.

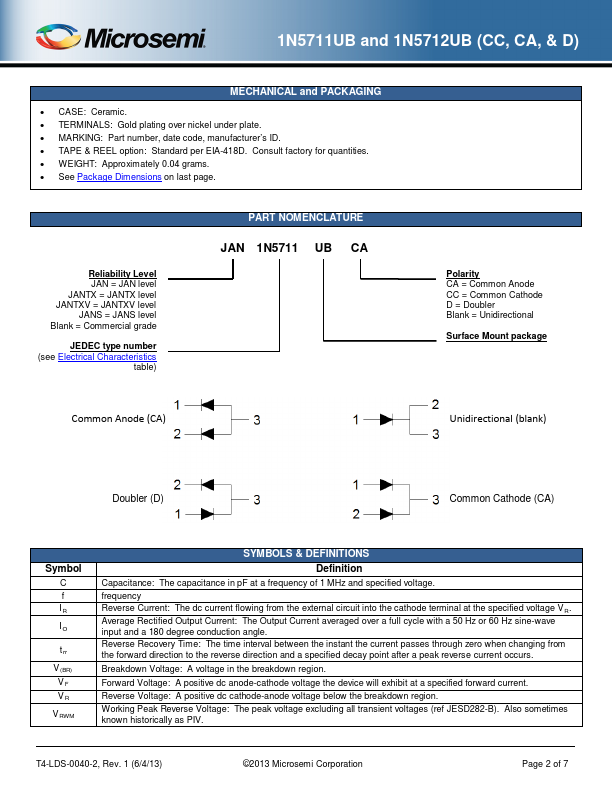

1N5711UBCA Datasheet Preview Page 2

Datasheet Details

Part number:

1N5711UBCA, 1N5711UB

Manufacturer:

Microsemi ↗

File Size:

46.35 KB

Description:

Schottky barrier diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N5711UBCA, 1N5711UB.
Please refer to the document for exact specifications by model.
