1N6371

1500 Watt Low Clamping Factor Transient Voltage Suppressor

1N6371 Features

* Screening in reference to MIL-PRF-19500 available

* Unidirectional and bidirectional TVS series in axial package for thru-hole mounting.

* Suppresses transients up to 1500 watts @ 10/1000 µs (see figure 1).

* tclamping (0 volts to V(BR) min): Unidirectional

* Less t

1N6371 General Description

This Transient Voltage Suppressor (TVS) series for 1N6358 through 1N6372 are JEDEC registered selections for both unidirectional and bidirectional devices. The 1N6358 through 1N6364 are unidirectional and the 1N6366 through 1N6372 are bidirectional where they all provide a very low specified clampin.

1N6371 Datasheet (564.23 KB)

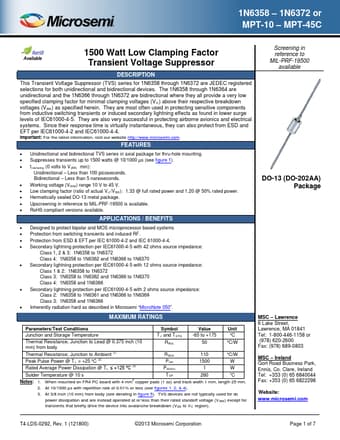

Preview of 1N6371 PDF

Datasheet Details

Part number:

1N6371

Manufacturer:

Microsemi ↗

File Size:

564.23 KB

Description:

1500 watt low clamping factor transient voltage suppressor.
