1N6372, 1N6358 1500 Watt Low Clamping Factor Transient Voltage Suppressor

1N6372 Description

1N6358 * 1N6372 or MPT-10 * MPT-45C Available 1500 Watt Low Clamping Factor Transient Voltage Suppressor .
This Transient Voltage Suppressor (TVS) series for 1N6358 through 1N6372 are JEDEC registered selections for both unidirectional and bidirectional dev.

1N6372 Features

* Screening in reference to MIL-PRF-19500 available
* Unidirectional and bidirectional TVS series in axial package for thru-hole mounting.
* Suppresses transients up to 1500 watts @ 10/1000 µs (see figure 1).
* tclamping (0 volts to V(BR) min): Unidirectional
* Less t

1N6372 Applications

* / BENEFITS
* Designed to protect bipolar and MOS microprocessor based systems
* Protection from switching transients and induced RF.
* Protection from ESD & EFT per IEC 61000-4-2 and IEC 61000-4-4.
* Secondary lightning protection per IEC61000-4-5 with 42 ohms source

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N6372, 1N6358. Please refer to the document for exact specifications by model.

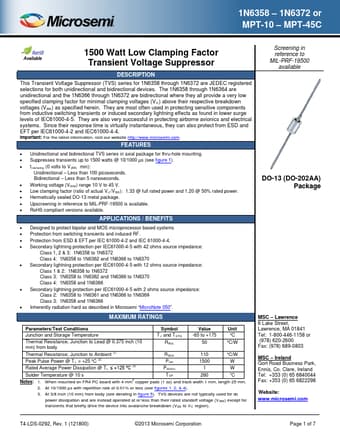

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N6372, 1N6358
Manufacturer
Microsemi ↗
File Size
564.23 KB
Datasheet
1N6358-Microsemi.pdf
Description
1500 Watt Low Clamping Factor Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: 1N6372, 1N6358.
Please refer to the document for exact specifications by model.
