3PMT12A, 3PMT150A, (3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor

3PMT5.0A thru 3PMT170A POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor ® SCOTTSDALE DIVISION .
These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages.

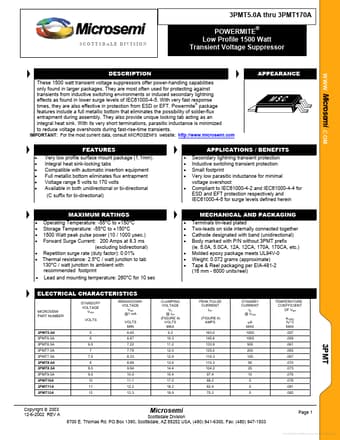

datasheet Preview Page 1 from Datasheet4u.com

3PMT150A_Microsemi.pdf

3PMT12A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3PMT12A, 3PMT150A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3PMT12A, 3PMT150A

Manufacturer:

Microsemi ↗

File Size:

471.97 KB

Description:

(3PMT5.0A - 3PMT170A) Low Profile 1500 Watt Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: 3PMT12A, 3PMT150A.
Please refer to the document for exact specifications by model.

Features

* include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time trans

Applications

* / BENEFITS Secondary lightning transient protection Inductive switching transient protection Small footprint Very low parasitic inductance for minimal voltage overshoot Compliant to IEC61000-4-2 and IEC61000-4-4 for ESD and EFT protection respectively and IEC61000-4-5 for surge levels defined herein
