M15KP26A

Transient Voltage Suppressor Protection Device

M15KP26A Features

* Available in both unidirectional and bidirectional configurations

* 3σ lot norm screening performed on standby current ID

* 100% surge tested devices

* Suppresses transients up to 15 kW @ 10/1000 µs and 100 kW @ 8/20 µs (see Figure 1)

* Various screenings in

M15KP26A General Description

This Transient Voltage Suppressor series of M15KP22A

* M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well. RoHS compliant versions are also available. These devices have the ability to clamp dangerous high volt.

M15KP26A Datasheet (387.14 KB)

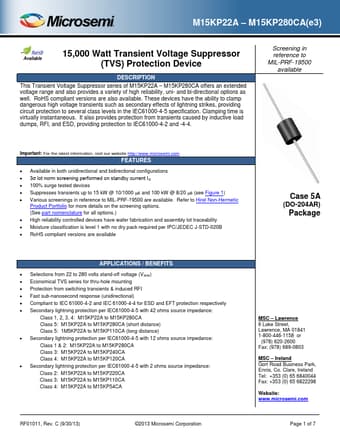

Preview of M15KP26A PDF

Datasheet Details

Part number:

M15KP26A

Manufacturer:

Microsemi ↗

File Size:

387.14 KB

Description:

Transient voltage suppressor protection device.
