MB356W, MB3505W - 35 Amp Single Phase Bridge Rectifier

Microsemi

📥 Download Datasheet

MB356W Datasheet Preview — This datasheet PDF includes multiple part numbers: MB356W, MB3505W. Please refer to the document for exact specifications by model.

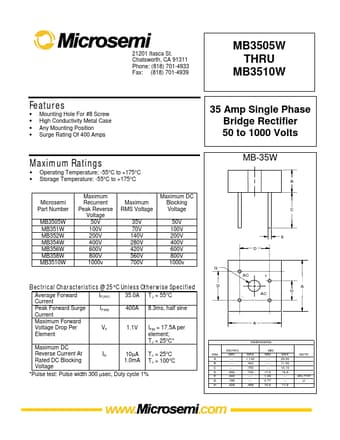

datasheet Preview Page 2

Datasheet Details

Part number: MB356W, MB3505W
Manufacturer: Microsemi ↗
File Size: 126.00 KB
Datasheet: MB3505W-Microsemi.pdf
Description: 35 Amp Single Phase Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: MB356W, MB3505W.
Please refer to the document for exact specifications by model.

MB356W Product details

Features

Mounting Hole For #8 Screw.
High Conductivity Metal Case.
Any Mounting Position.
Surge Rating Of 400 Amps 35 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Maximum Ratings.
Operating Temperature: -55°C to +175°C.
Storage Temperature: -55°C to +175°C Microsemi Part Number MB3505W MB351W MB352W MB354W MB356W MB358W MB3510W Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000v Maximum RMS Voltage 35V 70V 140V 280V 4.
