| Part number | MBR2080CT, MBR2040CT |
|---|---|
| Manufacturer | Microsemi |
| File Size | 146.80 KB |
| Description | Schottky Barrier Rectifiers |
| Datasheet |
 MBR2040CT-Microsemi.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: MBR2080CT, MBR2040CT. Please refer to the document for exact specifications by model. |

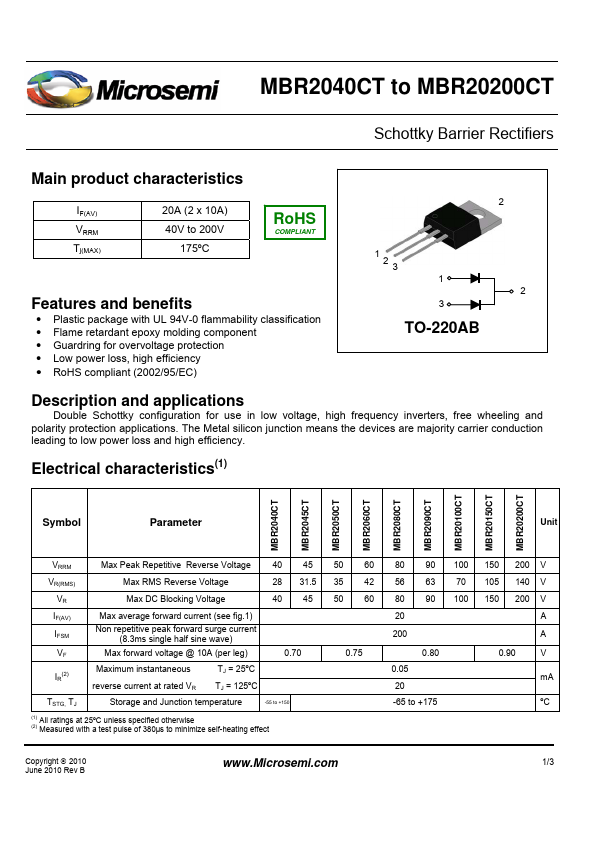

and applications Double Schottky configuration for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.The Metal silicon junction means the devices are majority carrier conduction leading to low power loss and high efficiency.Electrical characteristics(1) MBR2040CT MBR2045CT MBR2050CT MBR2060CT MBR2080CT MBR2090CT MBR20100CT MBR20150CT MBR20200CT Symbol Parameter Unit VRRM Max Peak Repetitive Reverse Voltage 40 45 VR(RMS) Max RMS Reverse Vol
