ZL38042 - Timberwolf Digital Signal Processor

Product Overview

Microsemi

Datasheet Details

Part number	ZL38042
Manufacturer	Microsemi
File Size	1.96 MB
Description	Timberwolf Digital Signal Processor
Datasheet	ZL38042 Datasheet

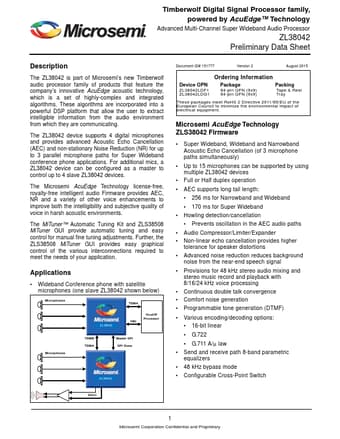

Additional preview pages of the ZL38042 datasheet.

Product details

Description

The ZL38042 is part of Microsemi’s new Timberwolf audio processor family of products that feature the company’s innovative AcuEdge acoustic technology, which is a set of highly-complex and integrated algorithms.

Features

DSP with Voice Hardware Accelerators.
Dual ΔΣ 16-bit digital-to-analog converters (DAC).
Sampling up to 48 kHz and internal output drivers.
Headphone amps capable of 4 single-ended or 2 differential outputs.
32 mW output drive power into 16 ohms.
Impulse pop/click protection.
2 Digital Microphone inputs supporting up to 4 Microphones on a single ZL38042 device.
2 TDM ports supporting PCM or Inter-IC Sound (I2S).
Ea.
