1N5807 - Superfast Rectifier Diodes

Datasheet Summary

Features

  • Very low reverse recovery time.
  • Hermetically sealed in lead borosilicate glass sleeve.
  • Low switching losses.
  • Soft, non-snap off, recovery characteristics.

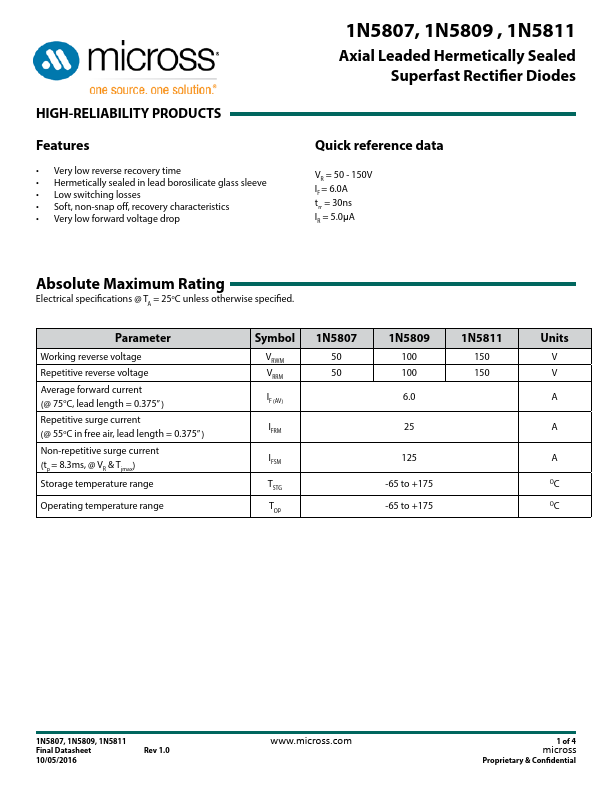

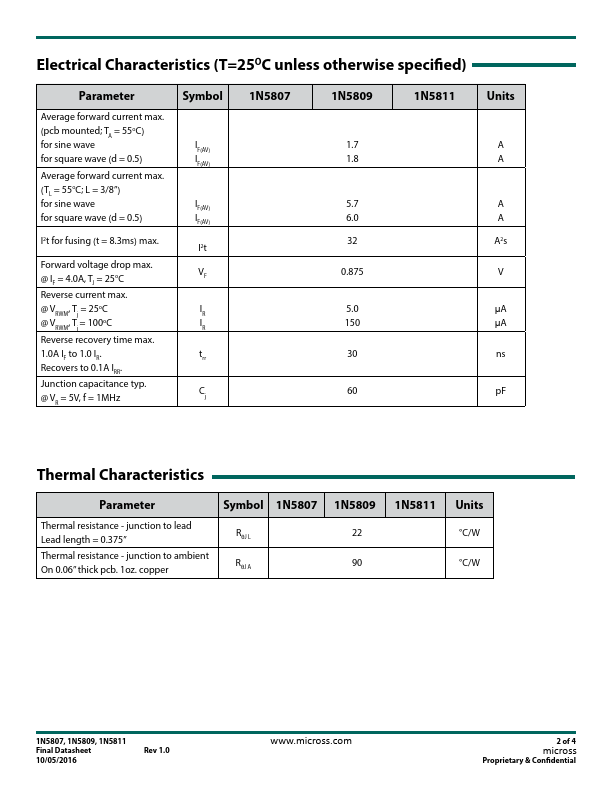

  • Very low forward voltage drop 1N5807, 1N5809 , 1N5811 Axial Leaded Hermetically Sealed Superfast Rectifier Diodes Quick reference data VR = 50 - 150V IF = 6.0A trr = 30ns IR = 5.0μA Absolute Maximum Rating Electrical specifications @ TA = 25oC unless otherwise specified. Parameter Working revers.
