1N5811 - Superfast Rectifier Diodes

This page provides the datasheet information for the 1N5811, a member of the 1N5807 Superfast Rectifier Diodes family.

Datasheet Summary

Features

  • Very low reverse recovery time.
  • Hermetically sealed in lead borosilicate glass sleeve.
  • Low switching losses.
  • Soft, non-snap off, recovery characteristics.
  • Very low forward voltage drop 1N5807, 1N5809 , 1N5811 Axial Leaded Hermetically Sealed Superfast Rectifier Diodes Quick reference data VR = 50 - 150V IF = 6.0A trr = 30ns IR = 5.0μA Absolute Maximum Rating Electrical specifications @ TA = 25oC unless otherwise specified. Parameter Working revers.

📥 Download Datasheet

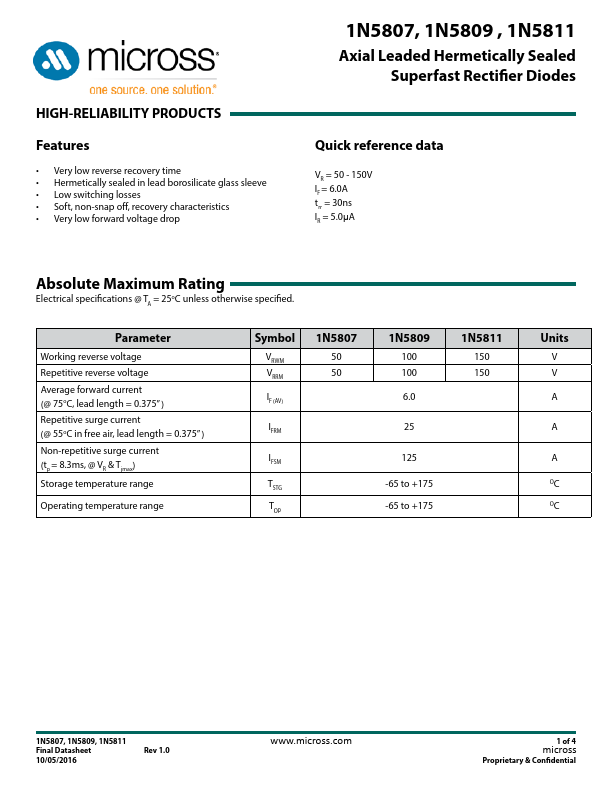

Datasheet preview – 1N5811

Datasheet Details

Part number 1N5811
Manufacturer Micross
File Size 169.93 KB
Description Superfast Rectifier Diodes
Datasheet download datasheet 1N5811 Datasheet

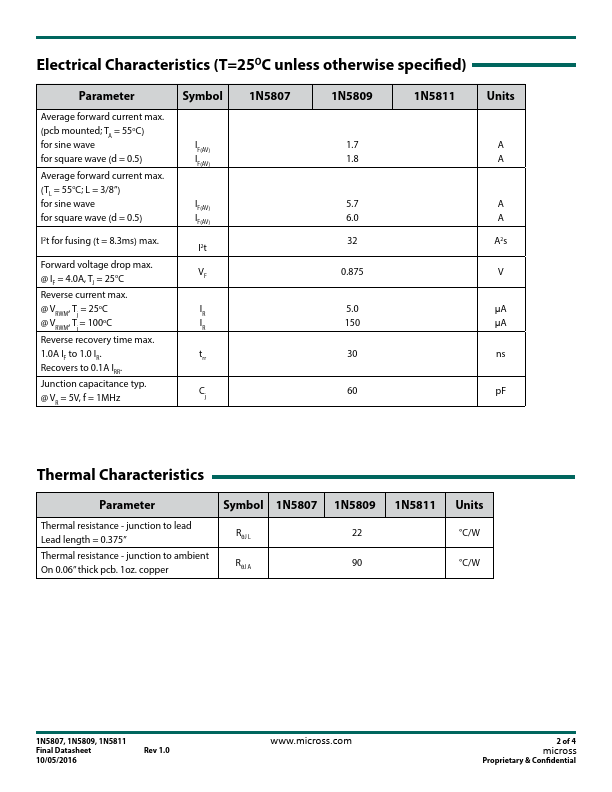

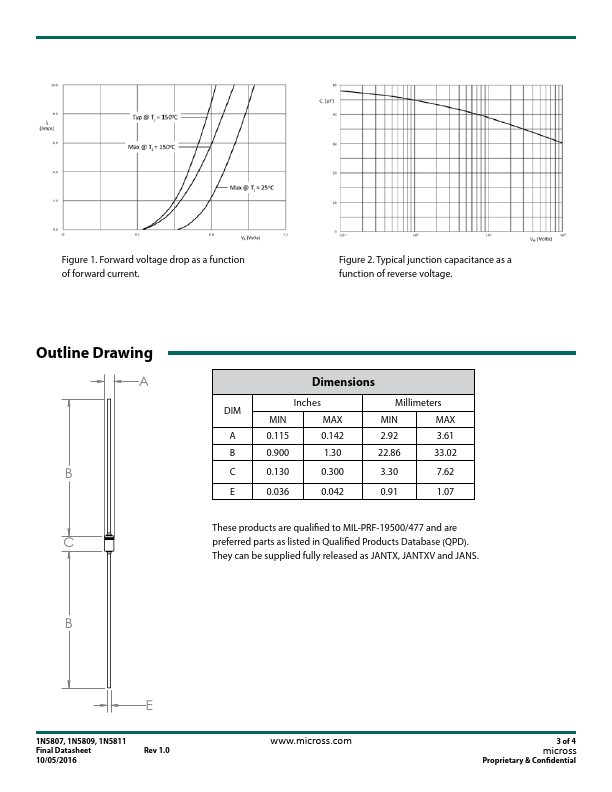

Additional preview pages of the 1N5811 datasheet.

📁 Similar Datasheet

  • 1N5811 - RECTIFIERS (Solid State)
  • 1N5811 - VOID-LESS HERMETICALLY SEALED ULTRAFAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5811 - SUPERFAST RECTIFIER DIOSE (Semtech)
  • 1N5811 - Rectifier Diode (MA-COM)
  • 1N5811 - ULTRAFAST RECOVERY RECTIFIER DIODES (EIC)
  • 1N5811 - HIGH EFFICIENCY RECTIFIERS (Digitron Semiconductors)
  • 1N5811 - SINTERED GLASS JUNCTION FAST AVALANCHE RECTIFIER (Gulf Semiconductor)
  • 1N5811 - 6 AMP HYPERFAST RECOVERY RECTIFIER (SSDI)
  • 1N5811-M - DIODE (DSI)
  • 1N5811D3 - ULTRA FAST RECOVERY POWER RECTIFIER (TT)
Other Datasheets by Micross
  • 1N5811C - Superfast Rectifier Diode
  • 1N5807 - Superfast Rectifier Diodes
  • 1N5809 - Superfast Rectifier Diodes

Full PDF Text Transcription

Click to expand full text
HIGH-RELIABILITY PRODUCTS Features • Very low reverse recovery time • Hermetically sealed in lead borosilicate glass sleeve • Low switching losses • Soft, non-snap off, recovery characteristics • Very low forward voltage drop 1N5807, 1N5809 , 1N5811 Axial Leaded Hermetically Sealed Superfast Rectifier Diodes Quick reference data VR = 50 - 150V IF = 6.0A trr = 30ns IR = 5.0μA Absolute Maximum Rating Electrical specifications @ TA = 25oC unless otherwise specified. Parameter Working reverse voltage Repetitive reverse voltage Average forward current (@ 75oC, lead length = 0.375” ) Repetitive surge current (@ 55oC in free air, lead length = 0.375” ) Non-repetitive surge current (tp = 8.
