* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ultrafast recovery time
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMB Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Le

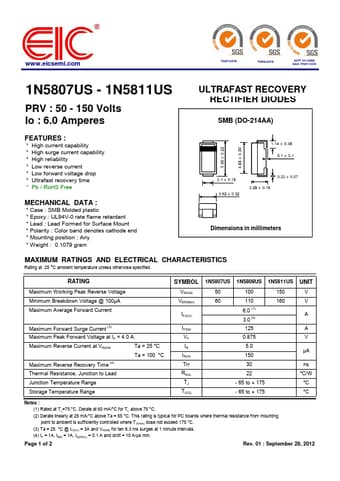

1N5811US Datasheet (166.08 KB)
1N5811US
EIC
166.08 KB
Ultrafast recovery rectifier diodes.
www.eicsemi.com
TH97/2478
TH09/2479
IATF 0113686 SGS TH07/1033
1N5807US - 1N5811US
PRV : 50 - 150 Volts Io : 6.0 Amperes
ULTRAFAST RECOVERY RECTI.
