LS5018 - Switching

LS5018 Description

LS5018 P-CHANNEL JFET Linear Systems replaces discontinued Siliconix 2N5018 The LS5018 is a single P-Channel JFET switch This p-channel analog switch.

LS5018 Features

* DIRECT REPLACEMENT FOR SILICONIX 2N5018  ZERO OFFSET VOLTAGE  LOW ON RESISTANCE  ABSOLUTE MAXIMUM RATINGS   @ 25°C (unless otherwise noted)  rDS(on) ≤ 75Ω  Maximum Temperatures  Storage Temperature  ‐55°C to +200°C
* Low Insertion Loss Operating Junction Temperature  ‐55°C to +200°C
* N

LS5018 Applications

* Gate Current (Note 1)  IG = ‐50mA
* Analog Switches MAXIMUM VOLTAGES
* Commutators Gate to Drain Voltage  VGDS = 30V
* Choppers Gate to Source Voltage  VGSS = 30V      LS5018 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted) SYMBOL  CHARACTERISTIC  MIN  TYP.   MAX  UNITS  CON

📥 Download Datasheet

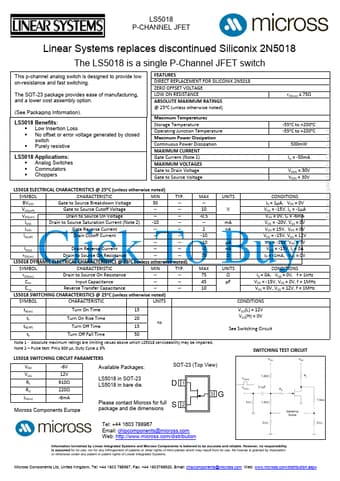

Preview of LS5018 PDF

Datasheet Details

Part number
LS5018
Manufacturer
Micross
File Size
310.18 KB
Datasheet
LS5018_Micross.pdf
Description
Switching
