LS5018B

TRISIL

STMicroelectronics

LS5018B Features

* BIDIRECTIONAL CROWBAR PROTECTION. BREAKDOWN VOLTAGES RANGE: 18V, 60V and 120V. HOLDING CURRENT = 200mA min. HIGH SURGE CURRENT CAPABILITY IPP = 100A 10/1000 µs DESCRIPTION The LS50xxB series has been designed to protect telecommunication equipment against lightning and transients induced by AC powe

LS5018B General Description

The LS50xxB series has been designed to protect telecommunication equipment against lightning and transients induced by AC power lines. Its high surge current capability makes the LS50xxB a reliable protection device for very exposed equipment, or when series resistors are very low. COMPLIES WITH T.

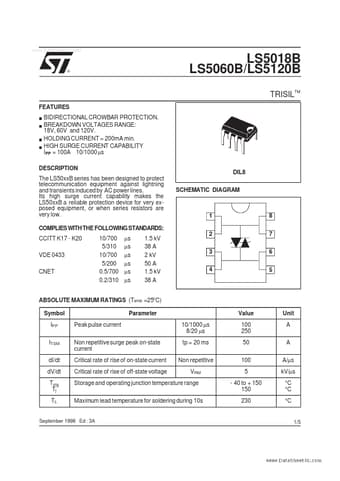

LS5018B Datasheet (79.92 KB)
