LS5115 Description

LS5115 P-CHANNEL JFET Linear Systems replaces discontinued Siliconix 2N5115 This analog switch is designed for inverting switching into inverting inp.

LS5115 Features

* DIRECT REPLACEMENT FOR SILICONIX 2N5115  LOW ON RESISTANCE  rDS(on) ≤ 100Ω  LOW CAPACITANCE  6pF  ABSOLUTE MAXIMUM RATINGS @ 25°C (unless otherwise noted)  Maximum Temperatures  Storage Temperature  ‐55°C to +200°C  LS5115 Benefits: Operating Junction Temperature  ‐55°C to +200°C
* Low On Res

LS5115 Applications

* Gate Current (Note 1)  IG = ‐50mA
* Analog Switches MAXIMUM VOLTAGES
* Commutators Gate to Drain Voltage  VGDS = 30V
* Choppers Gate to Source Voltage  VGSS = 30V  LS5115 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted) SYMBOL  CHARACTERISTIC  MIN  TYP.   MAX  UNITS  CONDITI

📥 Download Datasheet

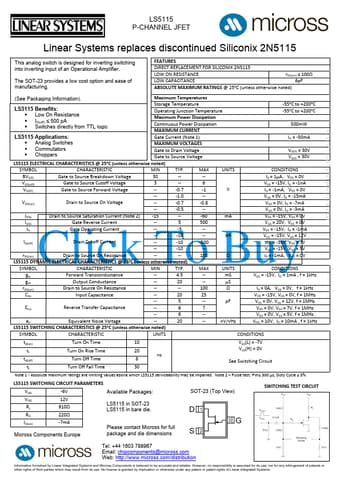

Preview of LS5115 PDF

Datasheet Details

Part number
LS5115
Manufacturer
Micross
File Size
315.68 KB
Datasheet
LS5115_Micross.pdf
Description
Switching
