M3GB2812D, M3GB2803R3S, High Reliability Radiation Hardened DC-DC Converter

M3GB-SERIES Hybrid * High Reliability Radiation Hardened DC-DC Converter 28V Input, Single and Dual Output PD-97823J .
and Circuit Description 2 of 22 2022-05-09 M3GB-SERIES 28V Input, Single and Dual Output Description Description M3GB-Series is part of the Internat.

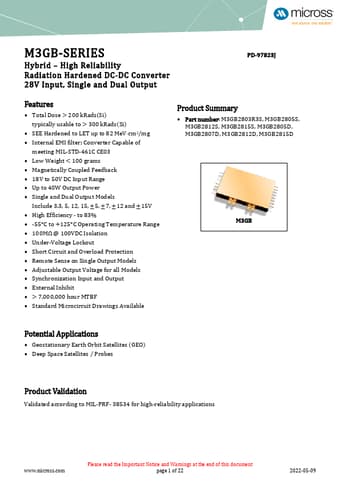

datasheet Preview Page 1 from Datasheet4u.com

M3GB2803R3S-Micross.pdf

M3GB2812D Datasheet Preview — This datasheet PDF includes multiple part numbers: M3GB2812D, M3GB2803R3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M3GB2812D, M3GB2803R3S

Manufacturer:

Micross

File Size:

899.62 KB

Description:

High Reliability Radiation Hardened DC-DC Converter

Note:

This datasheet PDF includes multiple part numbers: M3GB2812D, M3GB2803R3S.
Please refer to the document for exact specifications by model.

Features

* Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)
* SEE Hardened to LET up to 82 MeV
* cm2/mg
* Internal EMI filter; Converter Capable of meeting MIL-STD-461C CE03
* Low Weight < 100 grams
* Magnetically Coupled Feedback
* 18V to 50V D

Applications

* Geostationary Earth Orbit Satellites (GEO)
* Deep Space Satellites / Probes Product Validation Validated according to MIL-PRF- 38534 for high-reliability applications www. micross. com Please read the Important Notice and Warnings at the end of this document page 1 of 22 2022-05-
