M3GB12005S

HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

M3GB12005S Features

*  Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)

*  SEE Hardened to LET up to 82 MeV

* cm2/mg

*  Low Input & Output Noise

*  Low Weight < 110 grams

*  Magnetically Coupled Feedback

*  95V to 140V DC Input Range

*  Up to 40W Output Power

*  Single a

M3GB12005S General Description

M3GB-Series is part of the International Rectifier HiRel family of products. The M3GB-Series of DC-DC converters are second generation design of the legacy M3G-Series product family but with enhanced overall performance. M3GB-Series is form, fit and functional equivalent to the first generation M3G-.

M3GB12005S Datasheet (309.63 KB)

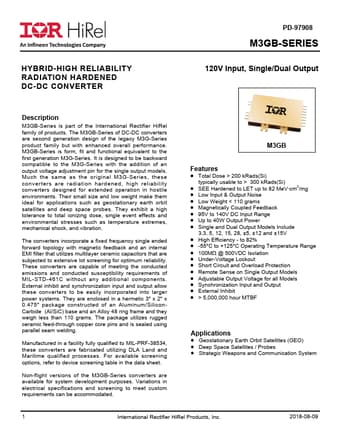

Preview of M3GB12005S PDF

Datasheet Details

Part number:

M3GB12005S

Manufacturer:

International Rectifier

File Size:

309.63 KB

Description:

Hybrid-high reliability radiation hardened dc-dc converter.
