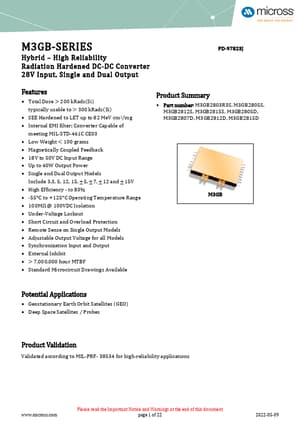

M3GB2815S High Reliability Radiation Hardened DC-DC Converter

and Circuit Description 2 of 22 2022-05-09 M3GB-SERIES 28V Input, Single and Dual Output Description Description M3GB-Series is part of the International Rectifier HiRel family of products. The M3GB-Series of DC-DC converters are second generation design of the legacy M3G-Series product family but.

M3GB2815S Features

* Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)

* SEE Hardened to LET up to 82 MeV

* cm2/mg

* Internal EMI filter; Converter Capable of meeting MIL-STD-461C CE03

* Low Weight < 100 grams

* Magnetically Coupled Feedback

* 18V to 50V D

M3GB2803R3S-Micross.pdf

M3GB2815S Datasheet Preview — This datasheet PDF includes multiple part numbers: M3GB2815S, M3GB2803R3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M3GB2815S, M3GB2803R3S

Manufacturer:

Micross

File Size:

899.62 KB

Description:

High reliability radiation hardened dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: M3GB2815S, M3GB2803R3S.
Please refer to the document for exact specifications by model.
