PN5114 Datasheet, Switching, Micross

PN5114 Features

  • Switching DIRECT REPLACEMENT FOR SILICONIX PN5114  LOW ON RESISTANCE  rDS(on) ≤ 75Ω  LOW CAPACITANCE  6pF  ABSOLUTE MAXIMUM RATINGS @ 25°C (unless otherwise noted)  Maximum Temperatures  Storag

PDF File Details

Part number:

PN5114

Manufacturer:

Micross

File Size:

319.68kb

Download:

📄 Datasheet

Description:

Switching.

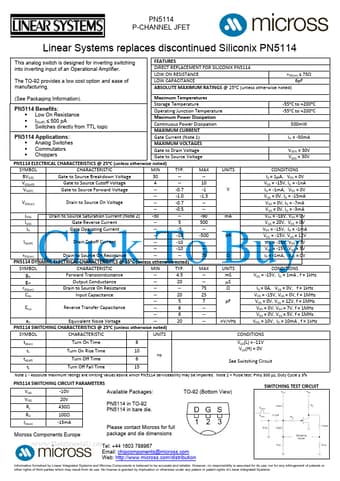

Datasheet Preview: PN5114 📥 Download PDF (319.68kb)

PN5114 Application

  • Applications Gate Current (Note 1)  IG = ‐50mA
  • Analog Switches MAXIMUM VOLTAGES
  • Commutators Gate to Drain Voltage  VGDS = 30V

TAGS

PN5114
Switching
Micross
