PN5019 - Switching

PN5019 Description

PN5019 P-CHANNEL JFET Linear Systems replaces discontinued Siliconix PN5019 The PN5019 is a single P-Channel JFET switch This p-channel analog switch.

PN5019 Features

* DIRECT REPLACEMENT FOR SILICONIX PN5019  ZERO OFFSET VOLTAGE  LOW ON RESISTANCE  ABSOLUTE MAXIMUM RATINGS   @ 25°C (unless otherwise noted)  rDS(on) ≤ 150Ω  Maximum Temperatures  Storage Temperature  ‐55°C to +200°C
* Low Insertion Loss Operating Junction Temperature  ‐55°C to +200°C

PN5019 Applications

* Gate Current (Note 1)  IG = ‐50mA
* Analog Switches MAXIMUM VOLTAGES
* Commutators Gate to Drain Voltage  VGDS = 30V
* Choppers Gate to Source Voltage  VGSS = 30V      PN5019 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted) SYMBOL  CHARACTERISTIC  MIN  TYP.   MAX  UNITS  CON

📥 Download Datasheet

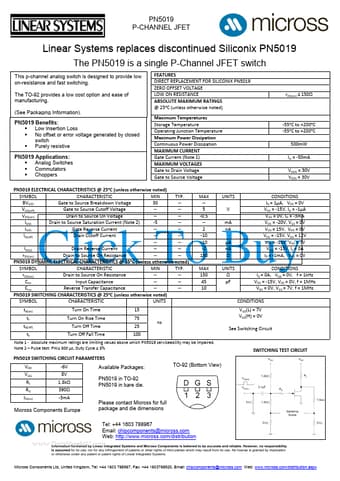

Preview of PN5019 PDF

Datasheet Details

Part number
PN5019
Manufacturer
Micross
File Size
314.08 KB
Datasheet
PN5019_Micross.pdf
Description
Switching
