PN5116 - Switching

PN5116 Description

PN5116 P-CHANNEL JFET Linear Systems replaces discontinued Siliconix PN5116 This analog switch is designed for inverting switching into inverting inp.

PN5116 Features

* DIRECT REPLACEMENT FOR SILICONIX PN5116  LOW ON RESISTANCE  rDS(on) ≤ 150Ω  LOW CAPACITANCE  6pF  ABSOLUTE MAXIMUM RATINGS @ 25°C (unless otherwise noted)  Maximum Temperatures  Storage Temperature  ‐55°C to +200°C  PN5116 Benefits: Operating Junction Temperature  ‐55°C to +200°C
* Low On Res

PN5116 Applications

* Gate Current (Note 1)  IG = ‐50mA
* Analog Switches MAXIMUM VOLTAGES
* Commutators Gate to Drain Voltage  VGDS = 30V
* Choppers Gate to Source Voltage  VGSS = 30V  PN5116 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted) SYMBOL  CHARACTERISTIC  MIN  TYP.   MAX  UNITS  CONDITI

📥 Download Datasheet

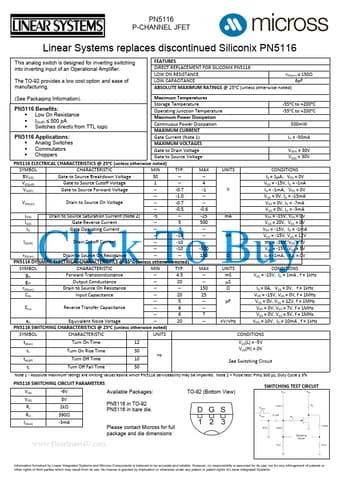

Preview of PN5116 PDF

Datasheet Details

Part number
PN5116
Manufacturer
Micross
File Size
293.05 KB
Datasheet
PN5116_Micross.pdf
Description
Switching
