PN5022 SMD Power Inductors Unshielded

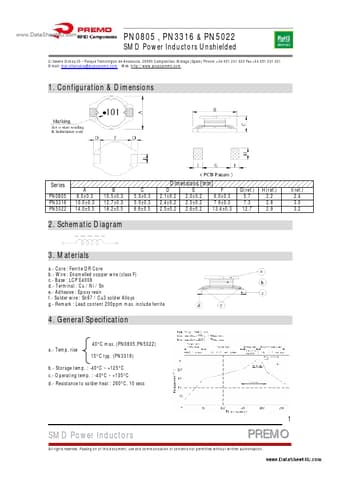

Update Specification Made by Pablo Pozo 6 SMD Power Inductors PREMO All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation. www.DataSheet4U.com PN0805 , PN3316 & PN5022 SMD Power Inductors Unshielded C/Severo Ochoa 33

www.DataSheet4U.com PN0805 , PN3316 & PN5022 SMD Power Inductors Unshielded C/Severo Ochoa 33 Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain) Phone +34 951 231 320 Fax +34 951 231 321 E-mail: mar.villarrubia@grupopremo.com Web http://www.grupopremo.com 1. Configuration & Dimensions Series PN0805 PN3316 PN5022 Dimensions [mm] A 8.0±0.3 10.0±0.3 14.0±0.5 B 10.5±0.3 12.7±0.3 18.2±0.5 C 5.0±0.3 5.0±0.3 6.6±0.5 D 2.1±0.2 2.4±0.2 2.5±0.2 E 2.0±0.2 2.5±0.2 2.6±0.2 F 6..
