HCM4003

Triple Track Magnetic Reader Head Signal Processor

HCM4003 Features

* Very few external components

* CMOS machining

* Wide operating power supply: DC 3V ~ 5.5V

* Quiescent current：2mA

* Triple track F/2F decoder Ordering information Package XXYY XXXXXX QFN16（3x3x0.75_0.5） Date code Wafer batch number HCM4003 X

HCM4003 General Description

The HCM4003 is a triple track magnetic reader head signal processing IC, designed for application in magnetic strip card reader system. The data rates of HCM4003 range from 200 to 15,000 bits per second. Acquisition and tracking of the data within this range is automatically. The amplitude voltage f.

HCM4003 Datasheet (394.41 KB)

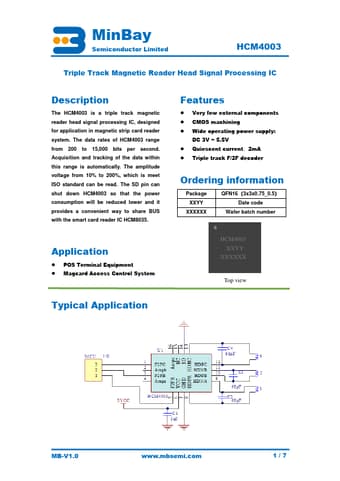

HCM4003 Datasheet Preview — Preview of HCM4003 PDF

Datasheet Details

Part number:

HCM4003

Manufacturer:

MinBay

File Size:

394.41 KB

Description:

Triple track magnetic reader head signal processor.
