HCM4002

Double Track Magnetic Reader Head Signal Processor

HCM4002 Features

* Very few external components

* CMOS machining

* Wide operating power supply: DC 3V ~ 5.5V

* Quiescent current：2mA

* Double track F/2F decoder Ordering information Package Mask XXYY XXXXXX DFN2

* 3-8L Date code Wafer batch number XXYY XXXXXX Application

* POS Termin

HCM4002 General Description

The HCM4002 is a double track magnetic reader head signal processing IC, designed for application in magnetic strip card reader system. The data rates of HCM4002 range from 200 to 15,000 bits per second. Acquisition and tracking of the data within this range is automatically. The amplitude voltage f.

HCM4002 Datasheet (513.77 KB)

Preview of HCM4002 PDF

Datasheet Details

Part number:

HCM4002

Manufacturer:

MinBay

File Size:

513.77 KB

Description:

Double track magnetic reader head signal processor.

📁 Related Datasheet

HCM4003 Triple Track Magnetic Reader Head Signal Processor (MinBay)

HCM4013 Three-track magnetic card signal processor (MinBay)

HCM49 AT-CUT CRYSTAL UNIT (Citizen)

HCM49S SMD Crystal Units (fujicom)

HCM0412-1R0M Molding Power Choke (ETC)

HCM0412-2R2M Molding Power Choke (ETC)

HCM0412-4R7M Molding Power Choke (ETC)

HCM0412-R22M Molding Power Choke (ETC)

HCM0412-R68M Molding Power Choke (ETC)

HCM1012GD670A05P Chip Common Mode Filter (UN Semiconducctor)

TAGS

HCM4002 Double Track Magnetic Reader Head Signal Processor MinBay

Image Gallery

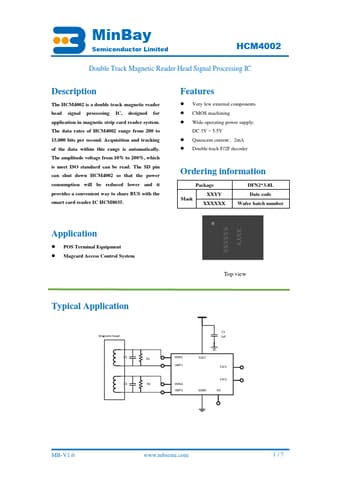

HCM4002 Datasheet Preview Page 2 HCM4002 Datasheet Preview Page 3
