HCP4801 - Over voltage and over current protection

Datasheet Summary

Description

HCP4801 is an Over-Voltage-Protection (OVP) IC.

The device will switch off internal MOSFET to disconnect VIN to OUT to protect load when any of input voltage, input current over the threshold.

The Over temperature protection (OTP) function monitors chip temperature to protect the device.

Features

  • High voltage technology.
  • Maximum input voltage.
  • Output power ON time.
  • OVP threshold.
  • OVP response time.
  • Output auto discharge.
  • Small Package :40V :8ms(Typ) :Used Pin PROADJ Options :.

📥 Download Datasheet

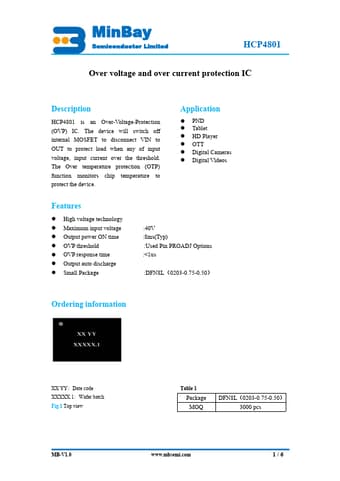

Datasheet preview – HCP4801
