HCP4802 Over voltage and over current protection

HCP4802 is an Over-Voltage-Protection (OVP) IC. The device will switch off internal MOSFET to disconnect VIN to OUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device. Applicatio.

HCP4802 Features

* High voltage technology

* Maximum input voltage

* Output power ON time

* OVP threshold voltage

* OVP response time

* Output auto discharge

* Small Package :30V :8ms(Typ) :6.0V :

HCP4802-MinBay.pdf

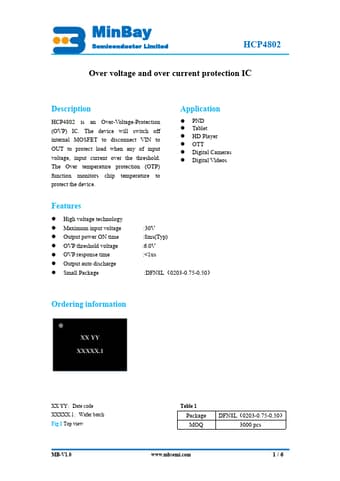

HCP4802 Datasheet Preview — Preview of HCP4802 PDF

Datasheet Details

Part number:

HCP4802

Manufacturer:

MinBay

File Size:

581.05 KB

Description:

Over voltage and over current protection.
