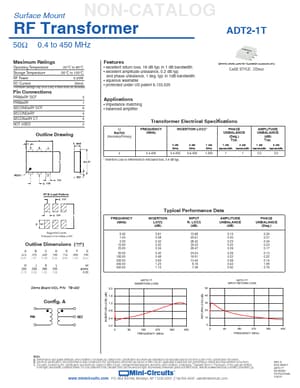

datasheet Preview Page 1 from Datasheet4u.com

ADT2-1T, ADT2-1T-Mini RF Transformer

Surface Mount NON-CATALOG RF Transformer ADT2-1T 50Ω 0.4 to 450 MHz Maximum Ratings Operating Temperature -20°C to 85°C Storage Temperature -5.

ADT2-1T-Mini-Circuits.pdf

ADT2-1T Datasheet Preview — This datasheet PDF includes multiple part numbers: ADT2-1T, ADT2-1T-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADT2-1T, ADT2-1T-Mini

Manufacturer:

Mini-Circuits

File Size:

176.57 KB

Description:

RF Transformer

Note:

This datasheet PDF includes multiple part numbers: ADT2-1T, ADT2-1T-Mini.
Please refer to the document for exact specifications by model.

Features

* excellent return loss, 18 dB typ. in 1 dB bandwidth
* excellent amplitude unbalance, 0.2 dB typ. and phase unbalance, 1 deg. typ. in 1dB bandwidth
* aqueous washable
* protected under US patent 6,133,525 Generic photo used for illustration purposes only CASE STYLE:

Applications

* impedance matching
* balanced amplifier Transformer Electrical Specifications Ω RATIO (Secondary/Primary) 2 FREQUENCY (MHz) 0.4-450 INSERTION LOSS
* 3 dB MHz 0.4-450 2 dB MHz 0.6-400 1 dB MHz 1-200 PHASE UNBALANCE (Deg. ) Typ. 1 dB 2 dB bandwidth bandwidth 1 1 AMPLI
