ADT2-71T+ RF Transformer

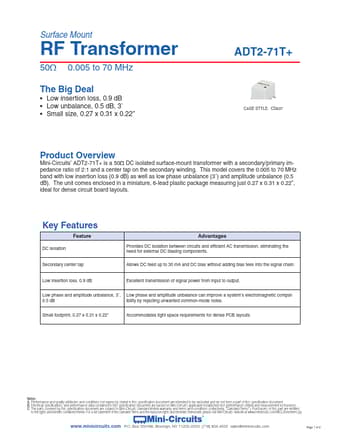

Surface Mount RF Transformer 50Ω 0.005 to 70 MHz The Big Deal Low insertion loss, 0.9 dB Low unbalance, 0.5 dB, 3˚ Small size, 0.27 x 0.31 x 0.22” ADT2-71T+ CASE STYLE: CD637 Product Overview Mini-Circuits’ ADT2-71T+ is a 50Ω DC isolated surface-mount transformer with a secondary/primary impedance ratio of 2:1 and a center tap on the secondary winding. This model covers the 0.005 to 70 MHz band with low insertion loss (0.9 dB) as well as low phase unbalance (3˚) a.

ADT2-71T+ Features

* Feature DC isolation Secondary center tap Advantages Provides DC isolation between circuits and efficient AC transmission, eliminating the need for external DC biasing components. Allows DC feed up to 30 mA and DC bias without adding bias tees into the signal chain. Low insertion loss, 0.9 dB Exc

ADT2-71T+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: ADT2-71T+, ADT2-71T+-Mini. Please refer to the document for exact specifications by model.
ADT2-71T+ Datasheet Preview Page 2

Datasheet Details

Part number:

ADT2-71T+, ADT2-71T+-Mini

Manufacturer:

Mini-Circuits

File Size:

209.96 KB

Description:

Rf transformer.

Note:

This datasheet PDF includes multiple part numbers: ADT2-71T+, ADT2-71T+-Mini.
Please refer to the document for exact specifications by model.
