PHA-1+, PHA-1+-Mini - Monolithic Amplifier

PHA-1+ Description

ULTRA HIGH DYNAMIC RANGE Monolithic Amplifier 50Ω 0.05 to 6 GHz THE BIG DEAL y Ultra High IP3 y High Pout, P1dB +22 dBm typ.at 2 GHz, +5V y Low noise.

PHA-1+ Features

* Feature Broad Band: 0.05 to 6 GHz Extremely High IP3 Versus DC power Consumption +42 dBm typical at 2 GHz No External Matching Components Required Advantages Broadband covering primary wireless communications bands: Cellular, PCS, LTE, WiMAX The PHA-1+ matches industry leading IP3 performance relat

PHA-1+ Applications

* y Base station infrastructure y Portable Wireless y CATV & DBS y MMDS & Wireless LAN y LTE LTE Performance TD-SCDMA Performance FREE X-PARAMETERS
* PRODUCT OVERVIEW PHA-1+ (RoHS compliant) is an advanced wideband amplifier fabricated using E-PHEMT technology and offers extremely high dynamic ra

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PHA-1+, PHA-1+-Mini. Please refer to the document for exact specifications by model.

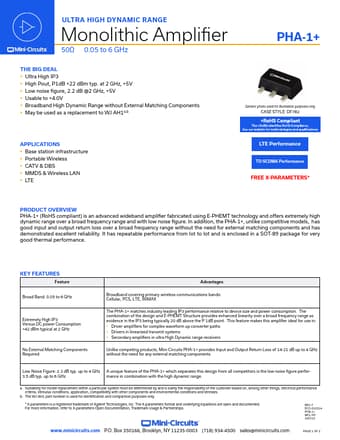

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PHA-1+, PHA-1+-Mini
Manufacturer
Mini-Circuits
File Size
494.30 KB
Datasheet
PHA-1+-Mini-Circuits.pdf
Description
Monolithic Amplifier
Note
This datasheet PDF includes multiple part numbers: PHA-1+, PHA-1+-Mini.
Please refer to the document for exact specifications by model.
