PHA-102+ Datasheet, Amplifier, Mini-Circuits

PHA-102+ Features

  • Amplifier Feature Ultra Wideband: 50MHz to 6GHz Advantages Broadband covering primary wireless communications bands Extremely High IP3 +50 dBm typ. at 0.9 GHz +40.3 dBm typ. at 3 GHz The PHA-1

PDF File Details

Part number:

PHA-102+

Manufacturer:

Mini-Circuits

File Size:

470.53kb

Download:

📄 Datasheet

Description:

Monolithic amplifier. RF-IN RF-OUT and DC-IN GND Function RF-IN RF-OUT and DC-IN GND Pin Number 1 3 Paddle 3 RF-OUT & DC-IN 4 2 GROUND 1 RF-IN Des

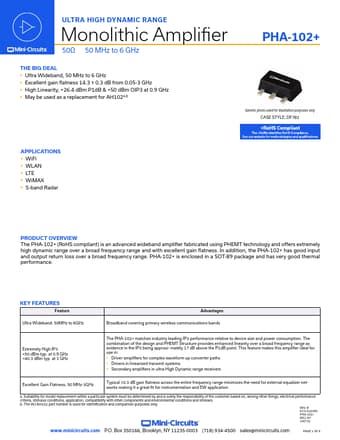

Datasheet Preview: PHA-102+ 📥 Download PDF (470.53kb)
Page 2 of PHA-102+ Page 3 of PHA-102+

PHA-102+ Application

  • Applications y WiFi y WLAN y LTE y WiMAX y S-band Radar PRODUCT OVERVIEW The PHA-102+ (RoHS compliant) is an advanced wideband amplifier fabricated
