PHA-0270B - Cascadable Silicon Bipolar MMIC Amplifier

Datasheet Summary

Description

The PHA-0270B is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a hermetic high reliability 70 mil microstrip package.

This MMIC is designed for use as a general purpose 50 Ω gain block.

📥 Download Datasheet

Datasheet preview – PHA-0270B

Datasheet Details

Part number PHA-0270B
Manufacturer TELEDYNE
File Size 103.14 KB
Description Cascadable Silicon Bipolar MMIC Amplifier
Datasheet download datasheet PHA-0270B Datasheet

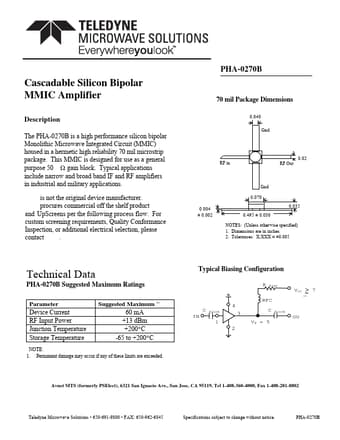

Additional preview pages of the PHA-0270B datasheet.
