QCN-25 Datasheet, Splitter/combiner, Mini-Circuits

QCN-25 Features

• Splitter/combiner
• low insertion loss, 0.4 dB typ.
• high isolation, 25 dB typ.
• wrap-around terminal for excellent solderability
• ultra small, 0.12"X0.06"X0.035"

PDF File Details

Part number:

QCN-25

Manufacturer:

Mini-Circuits

File Size:

269.78kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

QCN-25 Application

• Applications
• GPS
• PCS/DCS
• UMTS
• balanced amplifiers

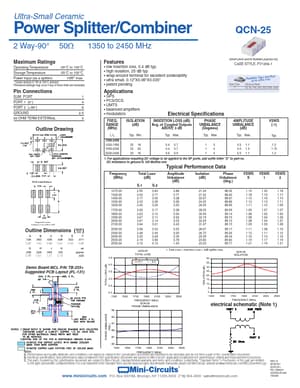

• modulators Electrical Specifications FREQ. RAN
