QCN-34+ Datasheet, splitter/combiner equivalent, Mini-Circuits

QCN-34+ Features

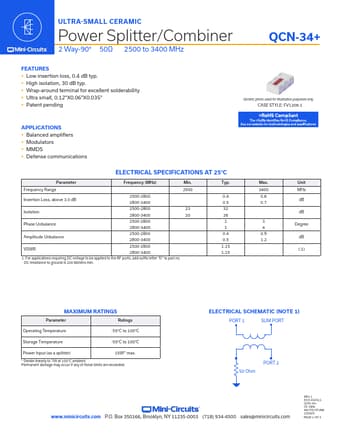

• Splitter/combiner y Low insertion loss, 0.4 dB typ. y High isolation, 30 dB typ. y Wrap-around terminal for excellent solderability y Ultra small, 0.12"X0.06"X0.035" y Patent pending Generic photo used

PDF File Details

Part number:

QCN-34+

Manufacturer:

Mini-Circuits

File Size:

425.72kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

QCN-34+ Application

• Applications y Balanced amplifiers y Modulators y MMDS y Defense communications ELECTRICAL SPECIFICATIONS AT 25°C Parameter Frequency (MHz) Min.
