QCN-34 Datasheet, Splitter/combiner, Mini-Circuits

✔ QCN-34 Features

low insertion loss, 0.4 dB typ.
high isolation, 30 dB typ.
wrap-around terminal for excellent solderability
ultra small, 0.12"X0.06"X0.035"
patent pending Appl

✔ QCN-34 Application

balanced amplifiers
modulators
MMDS

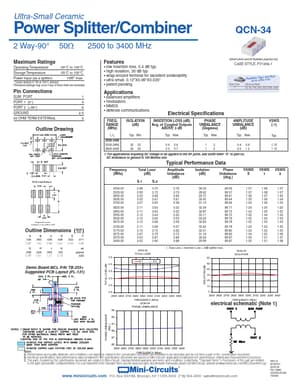

defense communications Electrical Specifications Generic photo

PDF File Details

Mini-Circuits manufacturer logo

Part number:

QCN-34

Manufacturer:

Mini-Circuits

File Size:

269.15kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

📥 Download PDF (269.15kb)
