SYPD-1+, SYPD-1+-Mini Phase Detector

Mini-Circuits

Description

Surface Mount Phase Detector 50Ω High Output 1 to 100 MHz SYPD-1+ Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C .

📥 Download Datasheet

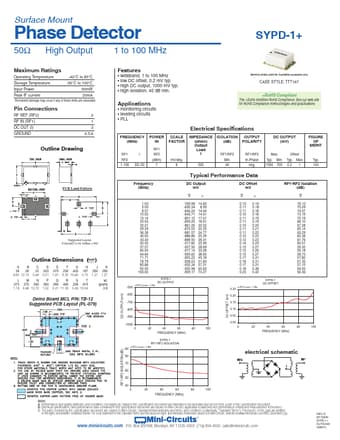

SYPD-1+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SYPD-1+, SYPD-1+-Mini. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SYPD-1+, SYPD-1+-Mini
Manufacturer: Mini-Circuits
File Size: 223.75 KB
Datasheet: SYPD-1+-Mini-Circuits.pdf
Description: Phase Detector
Note: This datasheet PDF includes multiple part numbers: SYPD-1+, SYPD-1+-Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 1 to 100 MHz
* low DC offset, 0.2 mV typ.
* high DC output, 1000 mV typ.

Applications

* monitoring circuits
* leveling circuits
* PLL Generic photo used for illustration purposes only CASE STYLE: TTT167 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications FREQUENCY (MHz) RF1 RF2 1-100
