SYPS-3-12W+, SYPS-3-12W_Mini Power Splitter/Combiner

Mini-Circuits

Description

Surface Mount Power Splitter/Combiner 3 Way-0° 50Ω Maximum Ratings Operating Temperature Storage Temperature Power Input (as a splitter) Internal Dis.

📥 Download Datasheet

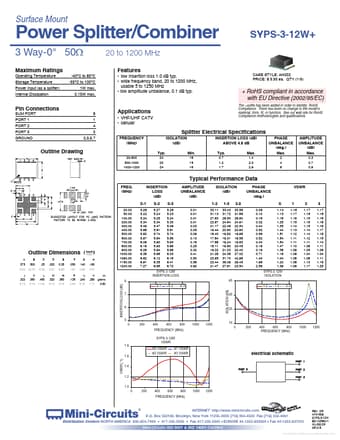

SYPS-3-12W+ Datasheet Preview — This datasheet PDF includes multiple part numbers: SYPS-3-12W+, SYPS-3-12W_Mini. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SYPS-3-12W+, SYPS-3-12W_Mini
Manufacturer: Mini-Circuits
File Size: 190.77 KB
Datasheet: SYPS-3-12W_Mini-Circuits.pdf
Description: Power Splitter/Combiner
Note: This datasheet PDF includes multiple part numbers: SYPS-3-12W+, SYPS-3-12W_Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss 1.0 dB typ.
* wide frequency band, 20 to 1200 MHz, usable 5 to 1250 MHz
* low amplitude unbalance, 0.1 dB typ. CASE STYLE: AH202 PRICE: $ 9.95 ea. QTY (1-9) + RoHS compliant in accordance with EU Directive (2002/95/EC) The +sufﬁx has been added in order

Applications

* VHF/UHF CATV
* cellular FREQUENCY (MHz) Typ. 20-500 500-1000 1000-1200 24 20 24 Splitter Electrical Speciﬁcations ISOLATION (dB) Min. 16 15 16 INSERTION LOSS (dB) ABOVE 4.8 dB Typ. 0.7 1.2 1.7 Outline Drawing Max. 1.4 2.0 2.9 PHASE UNBALANCE (deg. ) Max. 2 4 6 AMPLITUDE UNBALA
