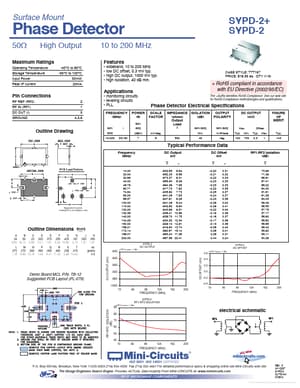

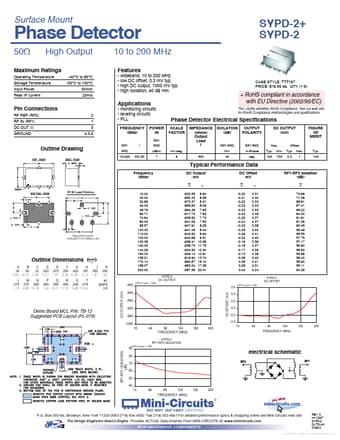

SYPD-2+, SYPD-2_Mini Phase Detector

SYPD-2+ Description

Phase Detector 50Ω High Output -40°C to 85°C -55°C to 100°C 50mW 20mA Surface Mount SYPD-2+ SYPD-2 10 to 200 MHz .

SYPD-2+ Features

* wideband, 10 to 200 MHz
* low DC offset, 0.3 mV typ.
* high DC output, 1000 mV typ.
* high isolation, 40 dB min. Maximum Ratings Operating Temperature Storage Temperature Input Power Peak IF current CASE STYLE: TTT167 PRICE: $18.95 ea. QTY (1-9) Pin Connections R

SYPD-2+ Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications.
* monitoring circuits
* leveling circuits
* PLL FREQUENCY (MHz) RF1 RF2 10-200 DC-50 I Phase Detector E
