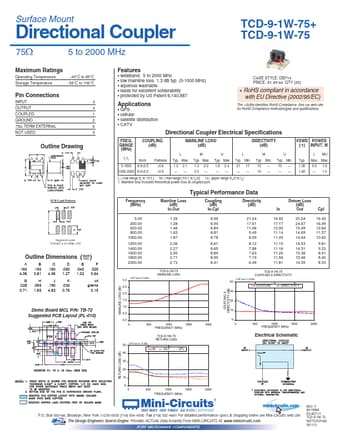

TCD-9-1W-75+, TCD-9-1W-75_Mini Directional Coupler

TCD-9-1W-75+ Description

www.DataSheet.co.kr Directional Coupler 75Ω Maximum Ratings Operating Temperature Storage Temperature -40°C to 85°C -55°C to 100°C Surface Mount.

TCD-9-1W-75+ Features

* wideband, 5 to 2000 MHz
* low mainline loss, 1.3 dB typ. (5-1000 MHz)
* aqueous washable
* leads for excellent solderability
* protected by US Patent 6,140,887 CASE STYLE: DB714 PRICE: $1.49 ea. QTY (25) Pin Connections INPUT OUTPUT COUPLED GROUND 75Ω T

TCD-9-1W-75+ Applications

* GPS
* cellular
* satellite distribution
* CATV Directional Coupler Electrical Specifications FREQ. RANGE (MHz) fL-fU 5-1000 Outline Drawing COUPLING (dB) L Nom. 8.9±0.5 Flatness ±0.6 ±0.6 MAINLINE LOSS1 (dB) M Typ. Max. 1.3 2.5 2.0
* 2.1
* 1.8

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TCD-9-1W-75+, TCD-9-1W-75_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
TCD-9-1W-75+, TCD-9-1W-75_Mini
Manufacturer
Mini-Circuits
File Size
355.40 KB
Datasheet
TCD-9-1W-75_Mini-Circuits.pdf
Description
Directional Coupler
Note
This datasheet PDF includes multiple part numbers: TCD-9-1W-75+, TCD-9-1W-75_Mini.
Please refer to the document for exact specifications by model.
