TCD1001P - CCD LINEAR IMAGE SENSOR CCD

Datasheet Summary

Features

  • l Number of Image Sensing Elements : 128 elements l Image Sensing Element Size : 32µm×32µm on 32µm centers l Photo Sensing Region l Clock l Internal Circuit l Package : High sensitive pn photodiode : 3 Input pulses 5V : Sample & Hold circuit, Clamp circuit : 20 pin Weight: 1.0g (typ. ).

📥 Download Datasheet

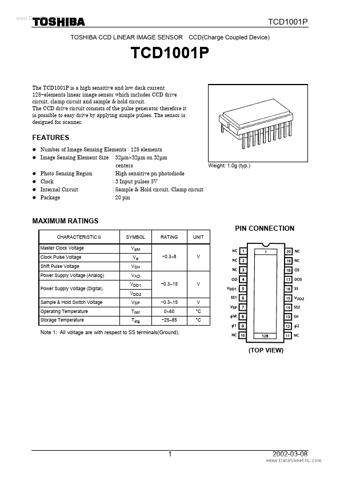

Datasheet preview – TCD1001P

Datasheet Details

Part number TCD1001P
Manufacturer Toshiba Semiconductor
File Size 317.20 KB
Description CCD LINEAR IMAGE SENSOR CCD
Datasheet download datasheet TCD1001P Datasheet
