TCD2560D - CCD Image Sensor

Toshiba Semiconductor

📥 Download Datasheet

TCD2560D Datasheet Preview — Preview of TCD2560D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TCD2560D
Manufacturer: Toshiba ↗ Semiconductor
File Size: 352.28 KB
Datasheet: TCD2560D_ToshibaSemiconductor.pdf
Description: CCD Image Sensor

TCD2560D Product details

Features

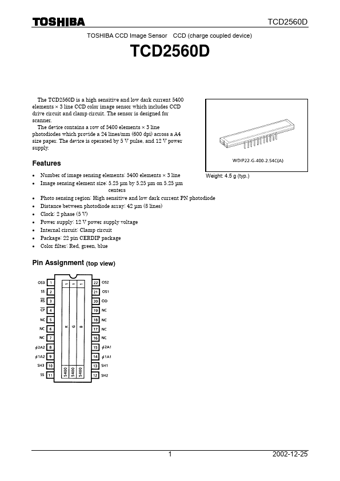

Number of image sensing elements: 5400 elements × 3 line Image sensing element size: 5.25 µm by 5.25 µm on 5.25 µm centers Photo sensing region: High sensitive and low dark current PN photodiode Distance between photodiode array: 42 µm (8 lines) Clock: 2 phase (5 V) Power supply: 12 V power supply voltage Internal circuit: Clamp circuit Package: 22 pin.
