TCD2561D - TOSHIBA CCD Linear Image Sensor CCD (charge coupled device)

Toshiba

📥 Download Datasheet

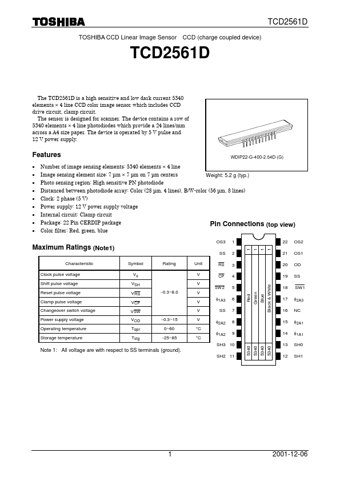

TCD2561D Datasheet Preview — Preview of TCD2561D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TCD2561D
Manufacturer: Toshiba ↗
File Size: 264.02 KB
Datasheet: TCD2561D_ToshibaSemiconductor.pdf
Description: TOSHIBA CCD Linear Image Sensor CCD (charge coupled device)

TCD2561D Product details

Features

Number of image sensing elements: 5340 elements × 4 line Image sensing element size: 7 µm × 7 µm on 7 µm centers Photo sensing region: High sensitive PN photodiode Distanced between photodiode array: Color (28 µm, 4 lines), B/W-color (56 µm, 8 lines) Clock: 2 phase (5 V) Power supply: 12 V power supply voltage Internal circuit: Clamp circuit Package: 22 Pin.
