TCD2558D - CCD Linear Image Sensor

Toshiba Semiconductor

📥 Download Datasheet

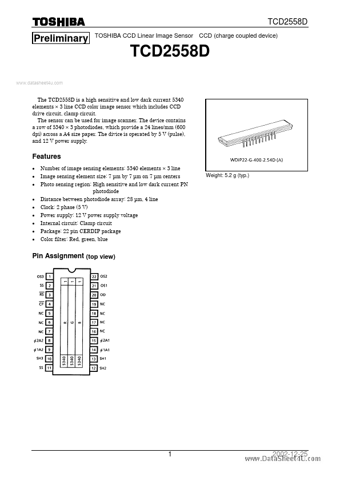

TCD2558D Datasheet Preview — Preview of TCD2558D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TCD2558D
Manufacturer: Toshiba ↗ Semiconductor
File Size: 278.62 KB
Datasheet: TCD2558D_ToshibaSemiconductor.pdf
Description: CCD Linear Image Sensor

TCD2558D Product details

Features

Number of image sensing elements: 5340 elements × 3 line Image sensing element size: 7 µm by 7 µm on 7 µm centers Photo sensing region: High sensitive and low dark current PN photodiode Distance between photodiode array: 28 µm, 4 line Clock: 2 phase (5 V) Power supply: 12 V power supply voltage Internal circuit: Clamp circuit Package: 22 pin.
