TCD2000P - CCD LINEAR IMAGE SENSOR

Toshiba Semiconductor

📥 Download Datasheet

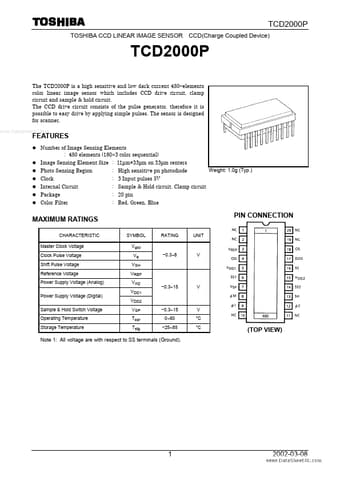

TCD2000P Datasheet Preview — Preview of TCD2000P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TCD2000P
Manufacturer: Toshiba ↗ Semiconductor
File Size: 291.54 KB
Datasheet: TCD2000P_ToshibaSemiconductor.pdf
Description: CCD LINEAR IMAGE SENSOR

TCD2000P Product details

Features

l Number of Image Sensing Elements : 480 elements (160×3 color sequential) l Image Sensing Element Size : 11µm×33µm on 33µm centers l Photo Sensing Region l Clock l Internal Circuit l Package l Color Filter : High sensitive pn photodiode : 3 Input pulses 5V : Sample & Hold circuit, Clamp circuit : 20 pin : Red, Green, Blue Weight: 1.0g (Typ. ).
