TCD1201DG - CCD LINEAR IMAGE SENSOR

Datasheet Summary

Features

  • ! Number of Image Sensing Elements : 2048 ! Image Sensing Element Size : 14µm by 200µm on 14µm centers ! Photo Sensing Region : High sensitive and low dark current pn photodiode ! Clock : 2 phase (5V) ! Package : 22 pin cerdip Weight: (3.5g (Typ. )).

📥 Download Datasheet

Datasheet preview – TCD1201DG

Datasheet Details

Part number TCD1201DG
Manufacturer Toshiba
File Size 217.76 KB
Description CCD LINEAR IMAGE SENSOR
Datasheet download datasheet TCD1201DG Datasheet
Additional preview pages of the TCD1201DG datasheet.

📁 Similar Datasheet

  • TCD122 - Ceramic Disc Capacitors (Arco)
  • TCD1001P - CCD LINEAR IMAGE SENSOR CCD (Toshiba Semiconductor)
  • TCD102D - CDD LINEAR IMAGE SENSOR (ETC)
  • TCD104 - Ceramic Disk Capacitors (Arco Electronics)
  • TCD143D - CCD (ETC)
  • TCD-10-1W - Directional Coupler (Mini-Circuits)
  • TCD-10-1W+ - Directional Coupler (Mini-Circuits)
  • TCD-10-1W-75 - Directional Coupler (Mini-Circuits)
  • TCD-10-1W-75+ - Directional Coupler (Mini-Circuits)
  • TCD-10-4-75+ - Directional Coupler (Mini-Circuits)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

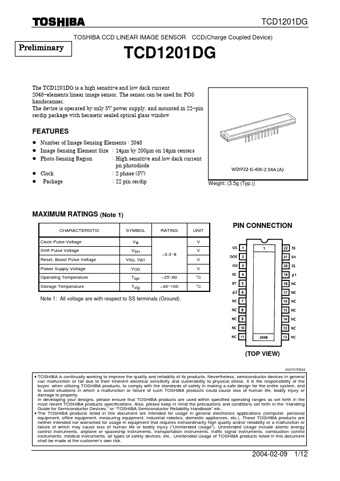

TCD1201DG Preliminary TOSHIBA CCD LINEAR IMAGE SENSOR CCD(Charge Coupled Device) TCD1201DG The TCD1201DG is a high sensitive and low dark current 2048−elements linear image sensor. The sensor can be used for POS handscanner. The device is operated by only 5V power supply, and mounted in 22−pin cerdip package with hermetic sealed optical glass window FEATURES ! Number of Image Sensing Elements : 2048 ! Image Sensing Element Size : 14µm by 200µm on 14µm centers ! Photo Sensing Region : High sensitive and low dark current pn photodiode ! Clock : 2 phase (5V) ! Package : 22 pin cerdip Weight: (3.5g (Typ.
