A5M24.3-2400AL Dual-Axis Quasi-static MEMS Mirror

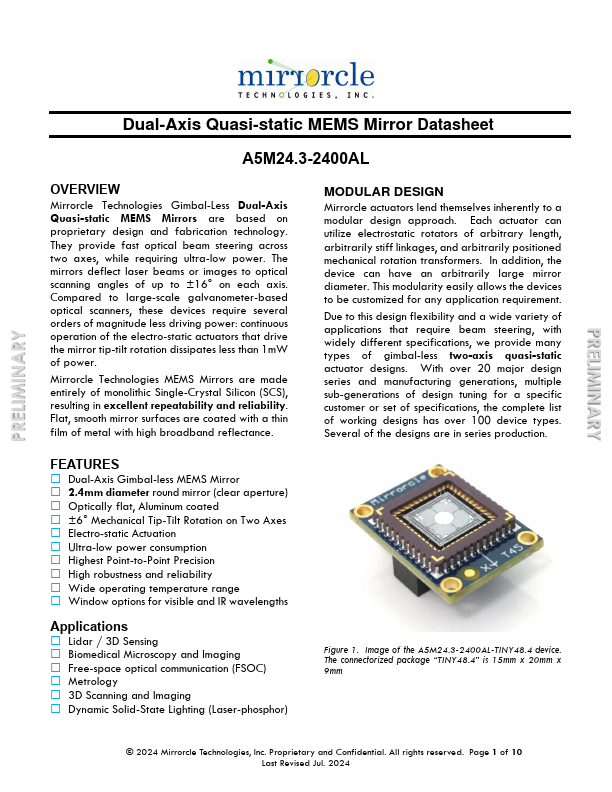

PRELIMINARY PRELIMINARY Dual-Axis Quasi-static MEMS Mirror Datasheet A5M24.3-2400AL OVERVIEW Mirrorcle Technologies Gimbal-Less Dual-Axis Quasi-static MEMS Mirrors are based on proprietary design and fabrication technology. They provide fast optical beam steering across two axes, while requiring ultra-low power. The mirrors deflect laser beams or images to optical scanning angles of up to ±16° on each axis. Compared to large-scale galvanometer-based optical scanners, these devices require se.

A5M24.3-2400AL Features

*  Dual-Axis Gimbal-less MEMS Mirror  2.4mm diameter round mirror (clear aperture)  Optically flat, Aluminum coated  ±6° Mechanical Tip-Tilt Rotation on Two Axes  Electro-static Actuation  Ultra-low power consumption  Highest Point-to-Point Precision  High robustness and reliability  Wide ope
