A5M36TG040-TC - Airfast Power Amplifier Module

NXP

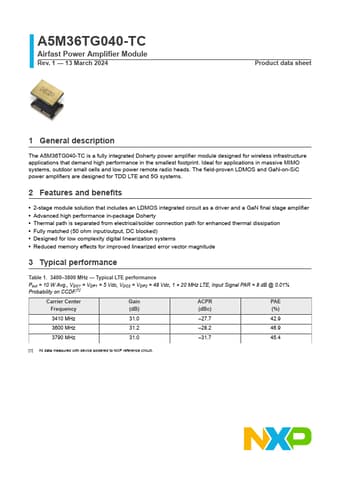

A5M36TG040-TC Datasheet Preview — Preview of A5M36TG040-TC PDF

Datasheet Details

Part number	A5M36TG040-TC
Manufacturer	NXP ↗
File Size	741.11 KB
Description	Airfast Power Amplifier Module
Datasheet	A5M36TG040-TC-NXP.pdf

A5M36TG040-TC Product details

Description

The A5M36TG040-TC is a fully integrated Doherty power amplifier module designed for wireless infrastructure applications that demand high performance in the smallest footprint.

Features

2-stage module solution that includes an LDMOS integrated circuit as a driver and a GaN final stage amplifier.
Advanced high performance in-package Doherty.
Thermal path is separated from electrical/solder connection path for enhanced thermal dissipation.
Fully matched (50 ohm input/output, DC blocked).
Designed for low complexity digital linearization systems.
Reduced memory effects for improved linearized error vector magnitude 3 Typical.
