DES9208901AC Datasheet - Mitel Networks Corporation

DES9208901AC 1GHz 16/17/ 32/33 Multi-Modulus Divider

The SP8782 is a multi-modulus divider which divides by 16/ 17 when the Ratio Select input is low and by 32/33 when theRatio Select input is high. When high, the modulus Control input selects the lower division ratio (16 or 32) and the higher ratio (17 or 33) when it is low. The device uses resynchro.

DES9208901AC-MitelNetworksCorporation.pdf

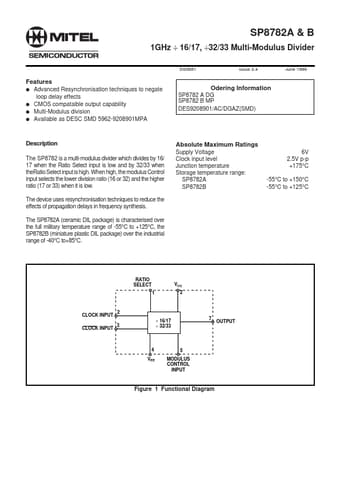

Preview of DES9208901AC PDF
DES9208901AC Datasheet Preview Page 2 DES9208901AC Datasheet Preview Page 3

Datasheet Details

Part number:

DES9208901AC

Manufacturer:

Mitel Networks Corporation

File Size:

129.23 KB

Description:

1ghz 16/17/ 32/33 multi-modulus divider.
