MT90210 Multi-Rate Parallel Access Circuit

MT90210 Description

MT90210 Multi-Rate Parallel Access Circuit Preliminary Information .
The MT90210 is a 100-pin device used to interface a parallel bidirectional 8 bit bus to 24 time division multiplexed (TDM) serial streams.

MT90210 Features

* Parallel-to-serial and serial-to-parallel conversion of up to 1536 full duplex channels or 3072 time-slots Serial port data rates selectable between 2.048, 4.096 or 8.192 Mb/s Provides a mechanism for a double buffer function to be implemented in external memory 24 serial I/O lines program

MT90210 Applications

* Fast access to ST-BUS, SCSA, MVIP, and H-MVIP serial backplanes Voice processing cards for Computer Telephony Integration (CTI) Video and teleconferencing bridge cards Fast DSP access to serial TDM buses RDin Strobe RBC R/W1 R/W2 S0 External Memory Access C

📥 Download Datasheet

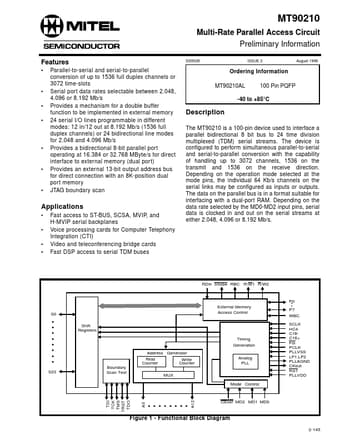

Preview of MT90210 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT90210
Manufacturer
Mitel Networks Corporation
File Size
133.95 KB
Datasheet
MT90210_MitelNetworksCorporation.pdf
Description
Multi-Rate Parallel Access Circuit
